R2-10 第五期 雷达图

superhong 2017-12-05 20:55:47 阅读: 1132

R2-10 第五期 雷达图

rm(list = ls())

work.dir <- "D:/R Learning/exercise/R2-05/R2_5_data/"

setwd(work.dir)

getwd()  #check working directory

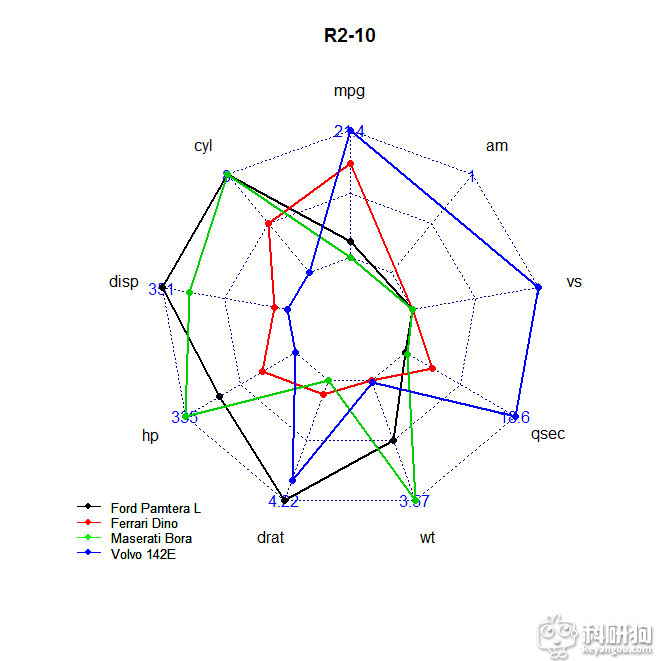

library(fmsb)

data5_1 <- mtcars[c(29:32),c(1:9)]

radarchart(data5_1, axistype =2,seg = 2, maxmin=F,centerzero = F,pty = 16,plty =1,plwd = 2,title = "R2-10")

legend("bottomleft",legend = c("Ford Pamtera L","Ferrari Dino",

       "Maserati Bora","Volvo 142E"),lty = c(1,1,1,1),

        pch = c(16,16,16,16),col = c("black","red","green","blue"),

        cex = 0.8,bty = "n")


#重新安装R3.4.3

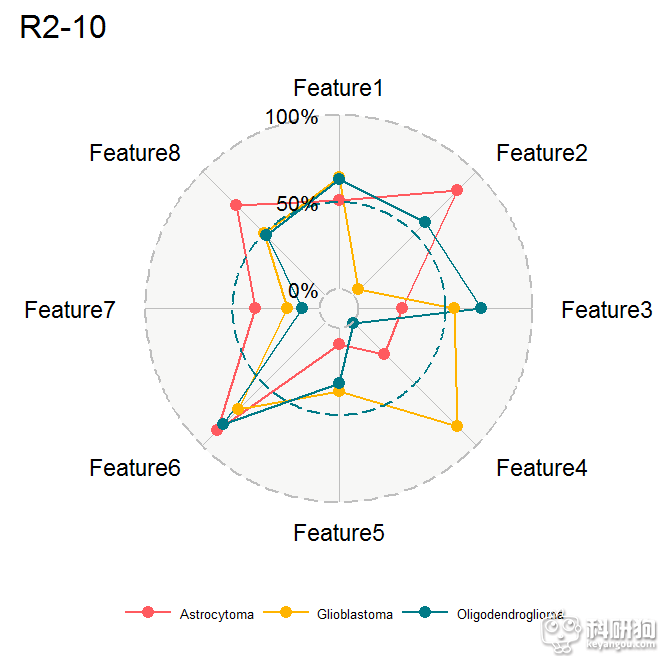

install.packages("devtools")

devtools::install_github("ricardo-bion/ggradar", dependencies=TRUE)

library(ggradar)

data5_2 <- read.csv("R2_5_data.csv", header=TRUE)

ggradar(data5_2,axis.label.size = 6,grid.line.width = 1,group.point.size = 4,group.line.width = 1,legend.text.size = 10,plot.title="R2-10")+theme(legend.position = "bottom")
