library(ggplot2)
library(latex2exp)

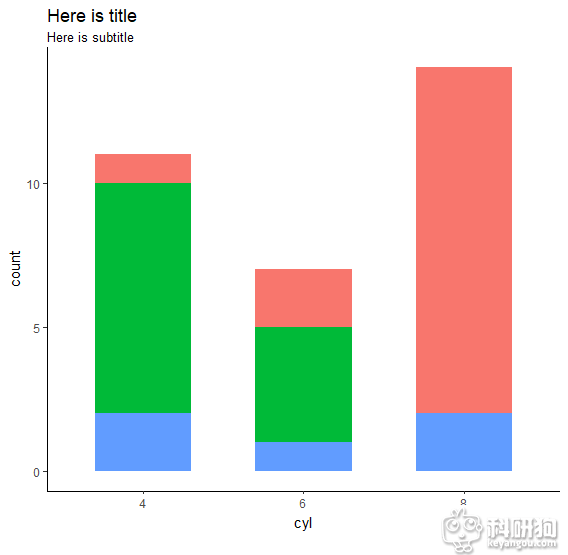

p=ggplot(mtcars,aes(factor(cyl)))+geom_bar(aes(fill=factor(gear)),width = 0.6)+labs(title="Here is title",subtitle="Here is subtitle",caption="R2-35",x="cyl")+scale_fill_discrete(name="gear")
mytheme<-theme_classic()+theme(panel.grid.major = element_blank(),panel.grid.minor = element_blank(),legend.position = "none",plot.caption = element_text(face = "bold.italic"))
p
p+mytheme

data<-read.csv("7.csv",sep=',',encoding="UTF-8")
data$threshold=as.factor(abs(data$q_value)>5&abs(log2(data$FC))>=1)
data$significant<-ifelse((abs(log2(data$FC))>1&abs(log2(data$q_value))>5),"yes","no")
data$mylables<-ifelse((abs(log2(data$FC))>1 & abs(log2(data$q_value))>5),as.character(data$ X.U.FEFF.Gene.ID),NA)
mysig<-subset(data,significant="yes")
mysig
ydrop=-0.6
textdrop=0.3

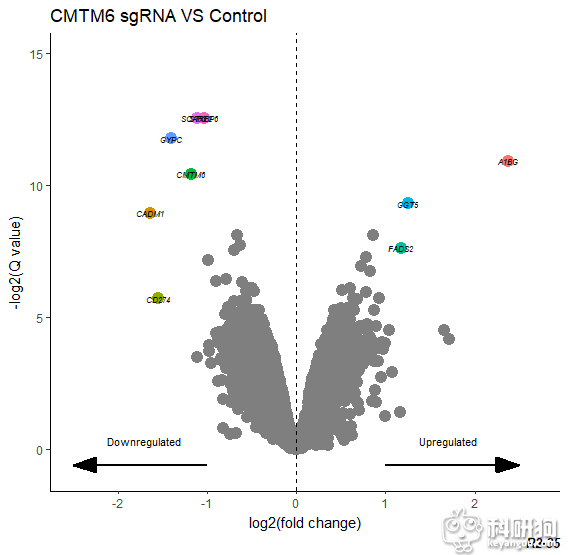

myplot<-ggplot(data=mysig,aes(log2(FC),-log2(q_value),col=mylables,size=significant))+geom_point(col="grey70",alpha=1)+geom_point(data = mysig,aes(log2(FC),-log2(q_value),col= mylables),size = 4)+xlim(-2.5,2.7)+ylim(-0.8,15)+scale_size_manual(values=c(0,2))+geom_vline(xintercept=0,linetype=2)+labs(title="CMTM6 sgRNA VS Control",caption="R2-35",x='log2(fold change)',y='-log2(Q value)')+geom_text(aes(label = mylables),size =2,col = "black",fontface = "italic")+annotate("segment", x = 1 , xend = 2.5, y = ydrop,yend =ydrop ,color = "black",size = 1,arrow = arrow(angle = 18,ends = "last",type ="closed")) + annotate("segment", x = -1 , xend = -2.5, y = ydrop,yend = ydrop ,color = "black",size = 1,arrow = arrow(angle = 18,ends = "last",type ="closed")) +annotate("text",x = 1.7,y = textdrop,label = "Upregulated",size =3) +annotate("text",x = -1.7,y = textdrop,label = "Downregulated",size= 3)
myplot
myplot+mytheme

箭头出来的瞬间，感谢各位的作业参考，真心不易啊，第一次感觉这么的难
