library(ggplot2)

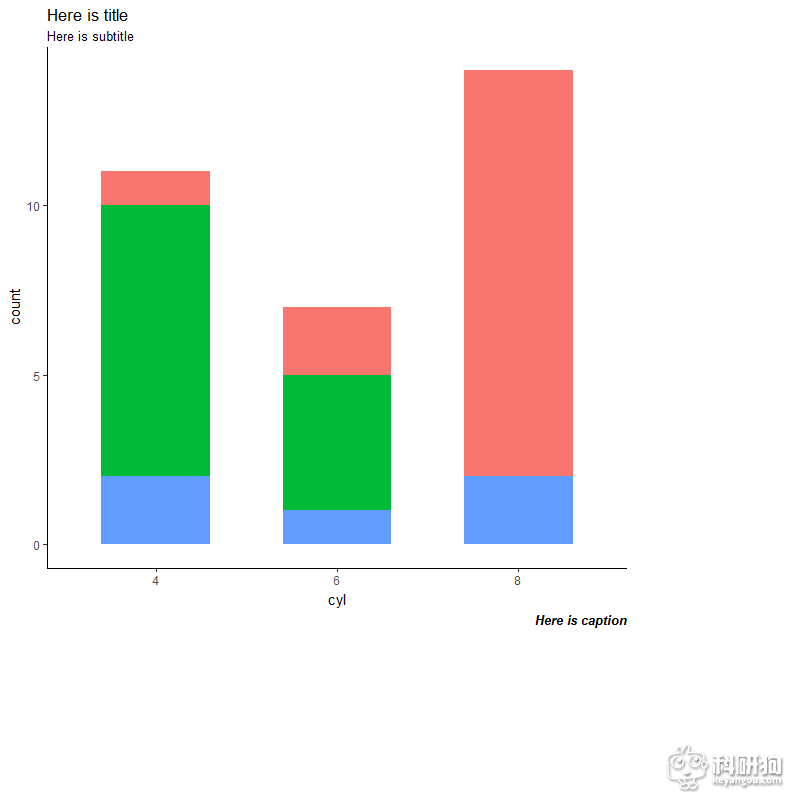

plot1<- ggplot(mtcars,aes(factor(cyl)))+geom_bar(aes(fill=factor(gear)),width = 0.6)+labs(title="Here is title",subtitle="Here is subtitle",caption="Here is caption",x="cyl")+scale_fill_discrete(name="gear")

mytheme<- theme_classic()+theme(panel.grid.major = element_blank(),panel.grid.minor = element_blank(),legend.position = "none",plot.caption = element_text(face = "bold.italic"))

library("ggplot2")

library("latexZesxp")

myvolcano<-read.csv(file.choose())

head(myvolcano)

myvolcano$significant<-ifelse(abs(log2(myvolcano$FC))<1&myvolcano$q_value<0.05,"yes","no")

myvolcano$mylabels<-ifelse(abs(log2(myvolcano$FC))>1&myvolcano$q_value<0.05, as.character(myvolcano$Gene.ID),NA)

mysig<-subset(myvolcano,significant=="yes")

mysig

ydrop=-0.6

textdrop=0.3

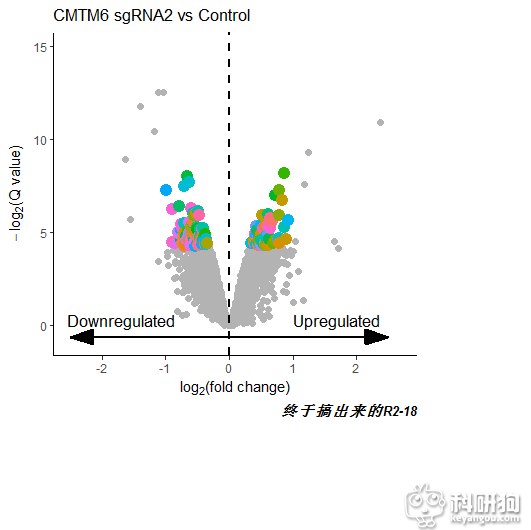

myplot<-ggplot(myvolcano,aes(x=log2(FC),y=-log2(q_value),size=significant))+geom_point(col="grey70",alpha=1)+xlim(-2.5,2.7)+ylim(-0.8,15)+scale_size_manual(values=c(2,0))+geom_point(data=mysig,aes(x=log2(FC),y=-log2(q_value),col=锘縂ene.ID),size=4,position=position_jitter(height=0.1,width=0))+geom_text(aes(label=mylabels),size=3,hjust=0,vjust=-1,col="black",fontface="italic")+annotate("segment",x=1,xend=2.5,y=ydrop,yend=ydrop,color="black",size=1,arrow=arrow(angle=18,ends="last",type="closed"))+annotate("segment",x=1,xend=-2.5,y=ydrop,yend=ydrop,color="black",size=1,arrow=arrow(angle=18,ends="last",type="closed"))+annotate("text",x=1.7,y=textdrop,label="Upregulated",size=4.5)+annotate("text",x=-1.7,y=textdrop,label="Downregulated",size=4.5)+labs(title="CMTM6 sgRNA2 vs Control",caption="终于搞出来的R2-18")+labs(x=expression(log[2]))+labs(x=expression(paste(log[2],"(fold change)")),y=expression(paste(-log[2],"(Q value)")))

myplot+theme(plot.title=element_text(hjust=mean(range(log2(myvolcano$FC)))+0.1))+geom_vline(xintercept=0,linetype=2,size=rel(0.8))+mytheme
