library(ggplot2)

mytheme <- theme_classic() +

  theme(panel.grid = element_blank(),

        legend.position = "no",

        plot.caption = element_text(face = "bold.italic"),

        panel.border=element_rect(fill='transparent', color='black'))

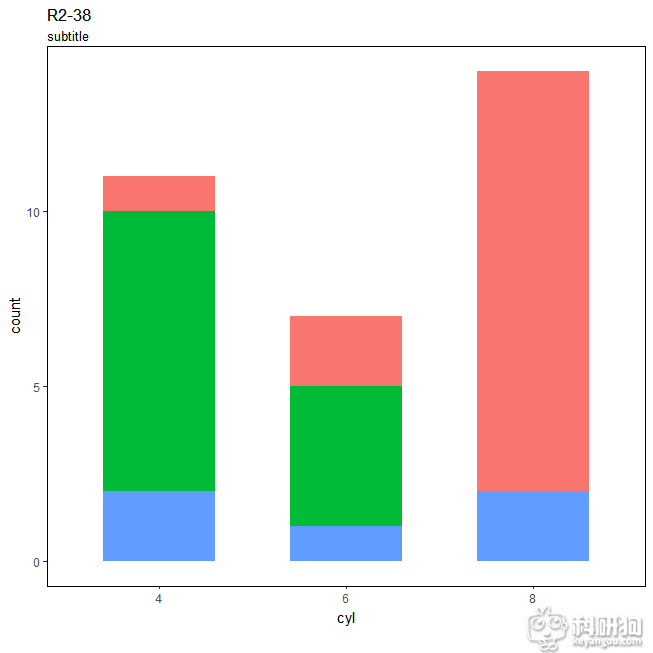

graph1 <- ggplot(mtcars, aes(factor(cyl))) +

  geom_bar(aes(fill = factor(gear)), width = 0.6) +

  labs(title = "R2-38", subtitle = "subtitle", caption = "caption", x = "cyl", fill = "gear") +

  mytheme

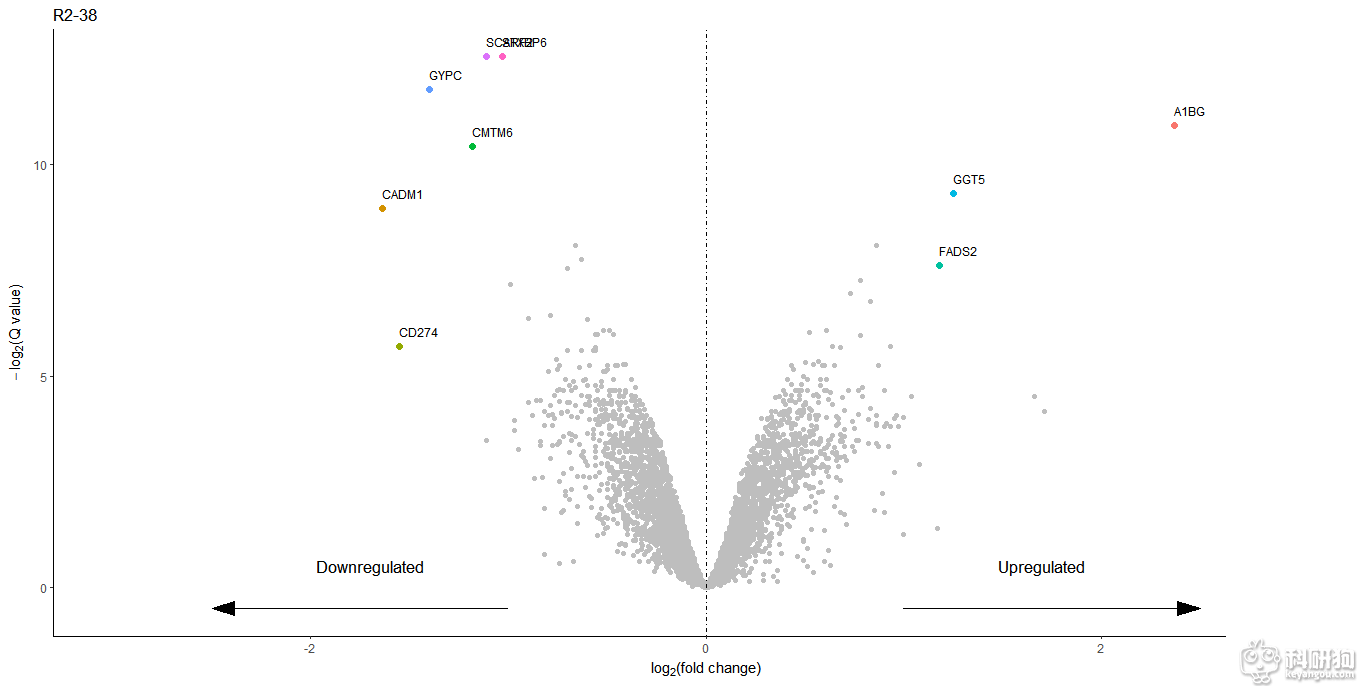

library(latex2exp)

setwd("D:/projects/R learning/week 7 data")

myvolcano <- read.csv("nature23643-s4.csv")

myvolcano$significant <- as.factor(ifelse(-log2(myvolcano$q_value)>5,

                                ifelse(abs(log2(myvolcano$FC)) >1,"yes" ,"not"),"not"))

data <- read.csv("nature23643-s4.csv")

mytheme=theme_bw()+theme(panel.border = element_blank(),panel.grid.major = element_blank(),panel.grid.minor = element_blank(),axis.line = element_line(colour = "black"),legend.position = "none")

data$id=a$锘縂ene.ID

data$q_value=-log2(data$q_value)

data$FC=log2(data$FC)

data$threshold=as.factor(ifelse(data$q_value>5,ifelse(abs(data$FC)>1,"yes","not"),"not"))

yes=subset(data,data$threshold == "yes")

not=subset(data,data$threshold == "not")

p = ggplot()+geom_point(data=not,aes(x=FC,y=q_value),color="grey")+geom_point(data=yes,aes(x=FC , y = q_value,color=id),size=2)+xlim(-3,3)+geom_text(data=yes,aes(x=FC,y=q_value,label=yes$id),size = 3, hjust=0,vjust=-1)+geom_vline(xintercept =0,lty=4,col="black")+labs(x = expression(paste(log[2],"(fold change)")),y = expression(paste(-log[2],"(Q value)")))+annotate("segment", x = 1 , xend = 2.5, y= -0.5, yend=-0.5, color = "black", size = 0.5,arrow = arrow(angle = 18,ends = "last",type = "closed"))+annotate("segment", x = -1 , xend = -2.5,  y= -0.5, yend=-0.5, color = "black",size = 0.5,arrow = arrow(angle = 18,ends = "last",type = "closed")) +annotate("text",x = 1.7,y=0.5,label = "Upregulated",size = 4.5) +annotate("text",x = -1.7,y=0.5, label = "Downregulated",size = 4.5)

p+mytheme+ggtitle("R2-38")
