library(maptools)

library(sp)

library(ggplot2)

library(rgdal)

library(plyr)

china_map<- readOGR("bou2_4p.shp")

x<-china_map@data

xs<- data.frame(x,id=seq(0:924)-1)

china_map1<- fortify(china_map)

china_mapdata<- join(china_map1,xs,type="full")

xinjiang_data<- subset(china_mapdata,NAME=="新疆维吾尔自治区")

head(xinjiang_data)

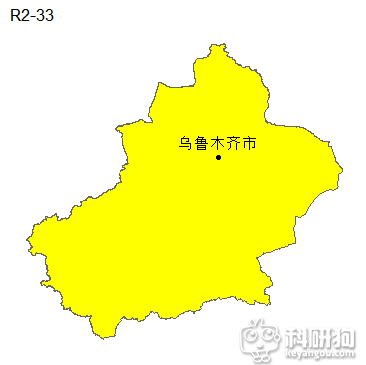

B<-ggplot(xinjiang,aes(x=long,y=lat,group=group,fill=NAME))+

geom_polygon(fill="yellow")+

geom_path(color="grey40")+

ggtitle("R2-33")+

geom_point(x=87.36,y=43.48,fill="red")+

annotate("text",x=87.36,y=43.8,label="乌鲁木齐市");B

theme<-theme( panel.background=element_blank(),

panel.grid=element_blank(),

axis.text=element_blank(),

axis.ticks=element_blank(),

axis.title=element_blank(), legend.position = "none")

B+theme

library(maptools)

library(sp)

library(ggplot2)

library(rgdal)

library(plyr)

china_map<- readOGR("bou2_4p.shp")

x<-china_map@data

xs<- data.frame(x,id=seq(0:924)-1)

china_map1<- fortify(china_map)

china_mapdata<- join(china_map1,xs,type="full")

mydata<-read.csv("R2-9-1.csv")

head(mydata)

data<-join(china_mapdata,mydata,type="full")

theme<-theme( panel.background=element_blank(),

panel.grid=element_blank(),

axis.text=element_blank(),

axis.ticks=element_blank(),

axis.title=element_blank())

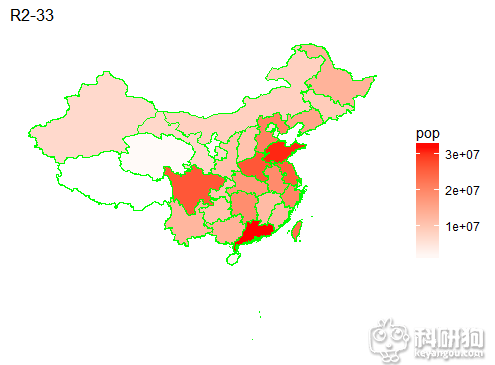

C<- ggplot(data,aes(x = long, y = lat, group = group,fill=pop))+

geom_polygon()+

scale_fill_gradient(low="white",high="red")+

geom_path(colour = "green")+

ggtitle("R2-33")

C+theme
